Data IC Vertikal

Data pinout IC Vertical amp crt tv reciever.

    LA78040, LA78141, UTP78040, LA78041(Sanyo),

    STV9302(max35v), STV9325, TDA9302(philips), AN15525 (panasonic)

    AN5525, AN15526A, la78045

    Pinout

1.        Invertin Input
2.        VCC
3.        Pump Up Out
4.        Gnd
5.        Ver.Out
6.        Output  Stage VCC
7.        Non Inv.Input

LA7833 Vertcal Amp Ic Aplied

La7830, LA7820

1. GND
2. Vertcal Outputpin
3. Vertical Output Power Supply
4. Input Pin
5. Osilation Pin/Stoping pin
6. Power Supply
7. Pulse Amplyfier out

LA7840 Vertical amp. tv crt

Data pinout

1. GND
2. Vertica Out
3. Output Stage VCC
4. Non Inverting Input
5. Inverting Input
6. VCC
7. Pump Up Output

IC TA8445K (toshiba)
Data pinout

1. Driver VCC
2. Triger Input
3. Ver. Size
4. 50/60 Hz Ver. Switce
5. RAMP
6. V.NFB
7. Pump Up VCC
8. Pump. Up Output
9. Phase Condensate
10. Gnd
11. V. Out
12. Out. Vcc

Skema Vertikal For sharp tv.

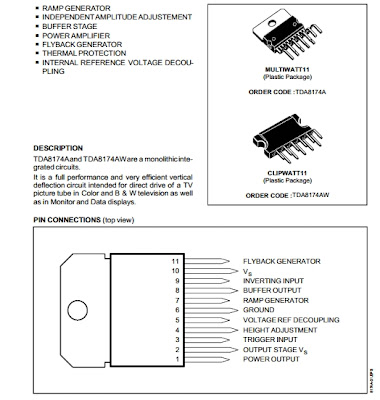

IC TDA8174A/ TDA8174AW (philips)
Vertical Amp. for tv CRT  Polytron
PinOut

1. Flyback Generator
2. VCC
3. Invertin Input
4. Buffering Output
5. RAMP. Generator
6. GND
7. Voltage Ref. Decoupling
8. Heigh Adjustment
9. Triger Input
10. Output Stage
11. Power Output

Skema Vertical Amp IC TDA 8174a/aw

IC TDA8357J/ TDA8356

Vertical Amp. For CRT TV Sharp wonder/ Universe

Data Pinout

1. Input A
2. Input B
3. VCC
4. Output B
5. GND
6. Flydback Supply Voltage
7. Output A
8. Guard Output
9. Feedback Input

Aplikasi TDA8357J

TDA3653B
TDA3653C
Vertical deflection and guard circuit
Pinout

Skema vert. aplied

IC AN5521 Panasonic
Data pinout

1. GND
2. Output
3. VCC For Uot
4. Input
5. Triger Pulsa Input
6. Pulse. Amp. Input
7. VCC

IC AN5539

Pinot

1. GND
2. Output
3. Output VCC
4. Non Inverting Input
5. Inverting Input
6. VCC 24 - 35 v
7. Pump Up Out

IC LA7837
Data pinout

1. VCC
2. Vertical Triger Input
3. Time constant
4. Vertical Amplitude control
5. Vertical Size Control 50/60 Switch
6. RAMP Waveform generator
7. Vertical Output AC/DC Feedback
8. +vcc8
9. Pump up out
10. Oscilation Stop
11. Gnd
12. Vertical Output
13. Vcc For vertical Output

Catatan :
Vin=Vertikal input(non-inverted),
Vout=Vertikal output,
Vfb=Vertikal feedback(inverted
inpput)
Vcc untuk pump-up dapat dilacak
melalui diode pum-up dan elko
pump up
Vfb = atau untuk Vin2
Gnd = atau untuk Vcc (-)

AN5521 Vin=4, Vout=2, Vcc=7,
Gnd=1, Vfb=
AN5522 Vin=7, Vout=5,
Vcc=2, Gnd=4, Vfb=1
AN5539 Vin= 4, Vout=2,
Vcc=6, Gnd=1, Vfb=5
AN15525 Vin=7, Vout=5, Vcc=2,
Gnd=4, Vfb=1
LA7832 Vin=4, Vout+2, Vcc=6,
Gnd=1, Vfb=5
LA7835 Vin=2, Vout=11,
Vcc1=1, Vcc2=7,
LA7837 Vin=2, Vout=12,
Vcc1=1, Vcc2=8, Gnd=11, Vfb=7
LA7838 = LA7837
LA7840 Vin=4, Vout=2, Vcc=6,
Gnd=1, Vfb=5
LA7841 = LA7840
LA7845 = LA7840
LA7846 Vin=5, Vout=3, Vcc=7,
Gnd=2, Vfb=6
LA7848 VinA=5, VinB=6,
Vout=3, Vcc(+)=7, Vcc(-)=2
LA7876 VinA=5, VinB=6 Vcc
(+)=7, Vcc(-)=2
STV9302 = lihat AN5522
STV9379 = lIHAT AN5522
TA8403 Vin=4, Vout=2,
Vcc=6, Vcc=6,
TA8445 Vin=2, Vout=11,
Vcc1=1(9v), Vcc2=7(26v), Gnd=10,
50/60=
TDA1771 Vin=3, Vout=1,
Vcc=9. Gnd=5
TDA4865 Vin=6, Vout=5,
Vcc=1, Gnd=4, Vfb=2
TDA8175 Vin=7, Vout=5,
Vcc=2, Vfb=1
TDA3653 Vin1=1, Vin2=3,
Vcc1=9, Vcc2=6, Vou=5, Gnd=4
TDA8350 VinA=1, VinB=2,
VoutA=10, VoutB= , Vcc1=3,
Vcc2=9, Ewin=12, Ewout=11
TDA8351 = tda8357
TDA8356 =  TDA8357
TDA8357 VinA=1, VinB=2,
VoutA=7, VoutB=4, Vcc1=3(12v),
Vcc2=6(45v), Gnd=5
TDA8358 VinA=1, VinB=2,
Vcc1=3(12v), Vcc2=9(25v),
VoutA=4, VoutB=10, Gnd=6.7,
Ewin=5, Ewout=8
TDA9302 =  LA7804
